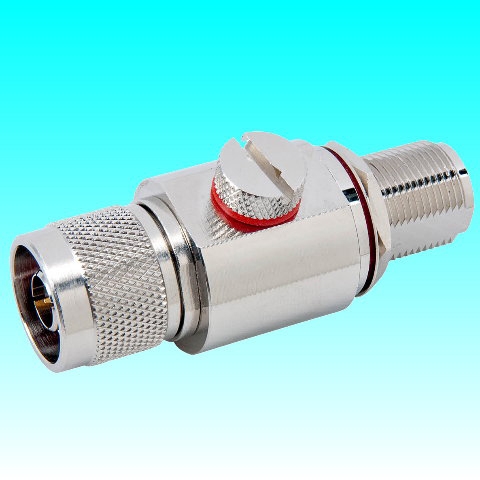

LP6023-NMNF

0-6GHz Lightning Protector ( N Male to N Female )

• Freguency Range: 0-6 GHz
• V.S.W.R.: 1.7 Max
• Insertion Loss: 0.9 dBi Max
• Impedence: 50 Ω
• Gas Tube DC: 230V ± 20 ％
• Gas Tube Impulse Breakdown Voltage ≦ 700V
• Gas Tube Insulation Resistance ≧ 10000 MΩ
• Max. Withstand Current: 5 KV
• RF Power Rating: 15 W
