WD-5829-WLAN antennas

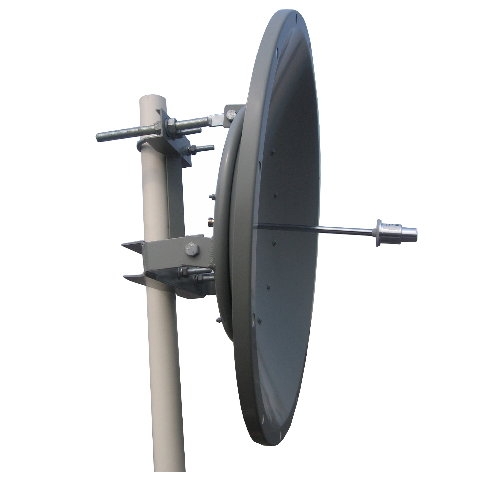

WD-5829 5.8GHz 29dBi Gain Wireless Lan Dish Antenna

• Frequency: 5725-5850 MHz
• Bandwidth: 125 MHz
• Gain: 29 dBi
• Horizontal Beamwidth: 6°
• Vertical Beamwidth: 6°
• F/B Ratio > 35 dB
• V.S.W.R. ≤ 1.5
• Impedance: 50 Ω
• Polarization: Vertical or Horizontal
• Power (Max.): 100 W
• Connector: N Female
• Diameter: φ0.6 M
• Weight: 5 kg
