WG-5827 Model: AUTOTEK LTD.

Enlargement

Product Introduction

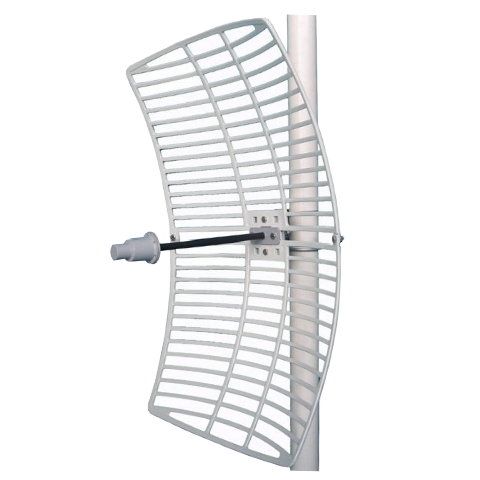

WG-5827 5.8GHz 27dBi Gain Wireless Lan Grid Antenna

Frequency: 5725-5850 MHz
Bandwidth: 125 MHz
Gain: 27 dBi
Horizontal Beamwidth: 6°
Vertical Beamwidth: 9°
F/B Ratio ＞ 25 dB
V.S.W.R. ≤ 1.5
Impedance: 50 Ω
Polarization: Vertical or Horizontal
Power (Max.): 100 W
Connector: N Female
Dimension: 0.4x0.6 M
Weight: 2.4 kg
Wind Velocity: 60 M/s
