WG-5830 Model: AUTOTEK LTD.

Enlargement

Product Introduction

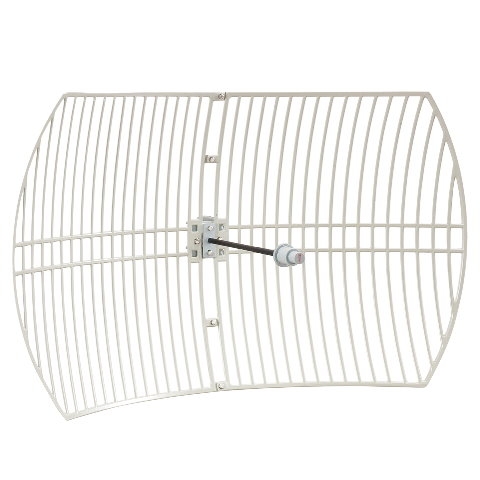

WG-5830 5.8GHz 30dBi Gain Wireless Lan Grid Antenna

Frequency: 5725-5850 MHz
Bandwidth: 125 MHz Gain: 30 dBi
Horizontal Beamwidth: 4°
Vertical Beamwidth: 6°
F/B Ratio > 30 dB V.S.W.R. ≤ 1.5
Impedance: 50 Ω
Polarization: Vertical or Horizontal
Power (Max): 100 W
Connector: N female

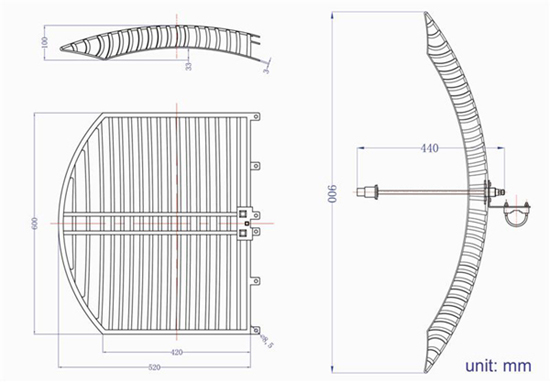

Dimension: 0.6×0.9 M Weight: 3 kg
Wind Velocity: 60 M/s
4.9-5.9GHz is available now!!
