WP-2458-WLAN antennas

WP-2458-WLAN antennas
    Enlargement
    Product Name : WP-2458-WLAN antennas
    Inquiry
    Back
    Product Introduction

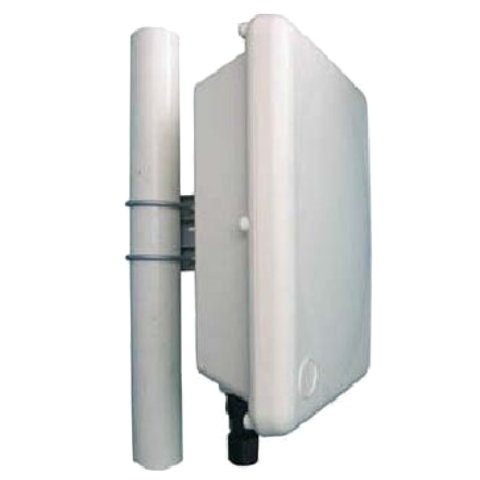

    WP-2458 2.4/5.8GHz Dual Band Wireless Lan Panel Antenna
    • Frequency: 2400-2483.5 / 5150-5850MHz
    • Bandwidth: 83.5 / 700 MHz
    • Gain: 20 / 23 dBi
    • V.S.W.R. ≤ 2.0
    • Horizontal Beamwidth: 22° / 11°
    • Vertical Beamwidth: 22° / 11°
    • Power (Max): 50 W
    • Polarization: Vertical
    • Impedance: 50 Ω
    • Connector: SMA Female
    • Dimension: 315x315x110 mm
    • Weight: 2 kg
    • Radome Material: UV-Inhibited ABS
