HONG KONG ELECTRONICS FAIRS-AUTUMN EDITION 2017 (香港秋季電子展)

Date: OCT. 13th 16th, 2017                       Booth No.: 5BC10

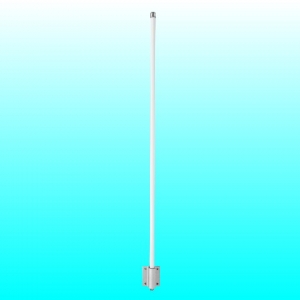

  • FREQUENCY: 144-165MHz
  • V.S.W.R.≦1.5
  • 2dBi GAIN
  • 50 OHMS IMPEDANCE
  • 100 WATTS POWER RATING
  • DIPOLE OMNI-DIRECTIONAL
  • NO GROUND PLANE DESIGN
  • N FEMALE CONNECTOR ( UHF FEMALE CONNECTOR IS AVAILABLE )
  • DURABLE WOVEN FIBERGLASS ROD WITHSTANDS 125MPH(55M/S) WIND SPEED
  • BUILT-IN SUPER DURABLE ALUMINUM DIECASTING MOUNTING BRACKET
  • 123 cm(4FT.) OVERALL LENGTH
  • WITH STAINLESS STEEL U-BOLTS & HARDWARE

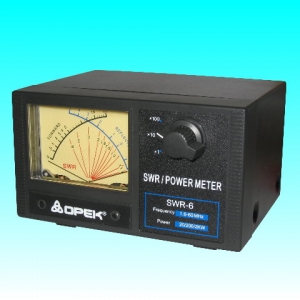

  • Frequency: 1.6 - 60 MHz (HF/VHF)
  • Impedance: 50Ω
  • Power Range: 0-2 KW
  • Power Scale: 20/200/2K W
  • Max. Power: 2K W
  • Accuracy LOW(x1) Range: (AVG.)±10%; ±15% or better
  • Accuracy HIGH(x10; x100) Range: (AVG.)±5%; ±10% or better
  • Min. Power (Fwd.) Measure: 1W
  • Insertion Loss: Less than 0.1dB
  • Tolerance: 10% full scale
  • Connection: UHF Female/M Type(SO-239); N type connector is optional
  • Test Function: Fwd/Rev Power; SWR
  • Dimensions: 140(W) x 84(H) x 122(D) mm
  • Weight: 600g
  • Unity Gain

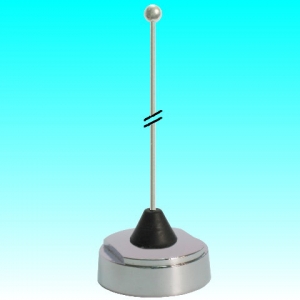

  • MODEL & FREQUENCY:

    NQ-136 : 136-144MHz
    NQ-144 : 144-152MHz
    NQ-152 : 152-162MHz
    NQ-162 : 162-174MHz
    NQ-220 : 220-225MHz
    NQ-420 : 420-435MHz

    NQ-435 : 435-450MHz
    NQ-450 : 450-470MHz
    NQ-470 : 470-490MHz
    NQ-490 : 490-512MHz
    NQ-800 : 800-860MHz

  • NMO Connection
  • Shining Chrome Plating Metal Base Cover
  • Stainless Steel Whip
  • POLARIZATION : LINEAR
  • Max. WIND SPEED : 60 M/s
  • MOUNTING HARDWARES INCLUDED
  • Max.Power(WATT):50
  • Impedance:50Ω
  • V.S.W.R. ≤1.5
  • Mast Diameter(mm): 40-50Φ
  • Connector: N Female
  • LTE(4G) Cellular System
  • Broadband Omni Ceiling Antenna
  • Freq.: 700-900/1700-2700 MHz
  • (Coming Soon)
