DU-530A

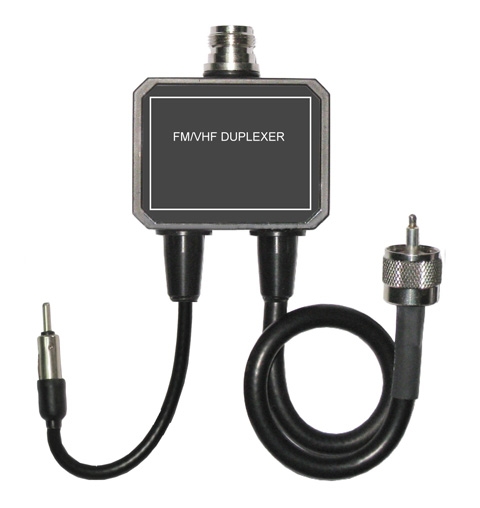

DU-530A FM(1-WAY/Rx) / VHF(2-WAY/Tx & Rx) INDOOR DUPLEXER

• Aluminum diecasting box prevents the duplexer fromelectro-magnetic interferences
• Frequency Bandwidth
  80-110MHz(FM Rx only) / 300W
  130-180MHz(VHF Tx & Rx) / 300W
• Insertion loss: less than 0.2dB
• Isolation: LESS or EQUAL TO 40dB
• V.S.W.R.: less than 1.3:1
• Connector: SO-239 Jack on input side;1FT 5D-FB coax. cable w/PL-259 plug & 1FT 3C-2V w/Motorola antenna plug on output side
