SWR-6
    Enlargement
    Product Name : SWR-6
    Product Introduction

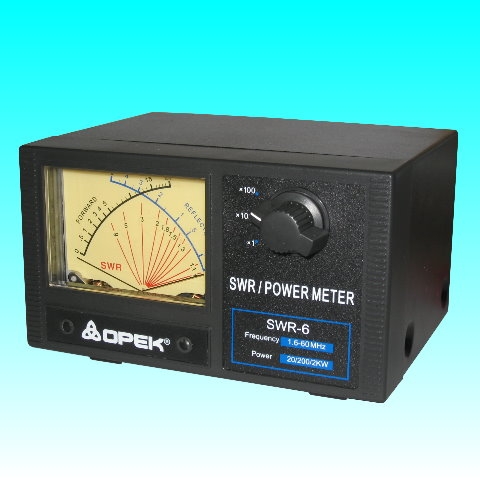

    SWR-6 HF/VHF SWR POWER METER

    • Frequency: 1.6 - 60 MHz (HF/VHF)
    • Impedance: 50Ω
    • Power Range: 0-2 KW
    • Power Scale: 20/200/2K W
    • Max. Power: 2K W
    • Accuracy LOW(x1) Range: (AVG.)±10%; ±15% or better
    • Accuracy HIGH(x10; x100) Range: (AVG.)±5%; ±10% or better
    • Min. Power (Fwd.) Measure: 1W
    • Insertion Loss: Less than 0.1dB
    • Tolerance: 10% full scale
    • Connection: UHF Female/M Type(SO-239); N type connector is optional
    • Test Function: Fwd/Rev Power; SWR
    • Dimensions: 140(W) x 84(H) x 122(D) mm
    • Weight: 600g
