WC-0825-WLAN antenna

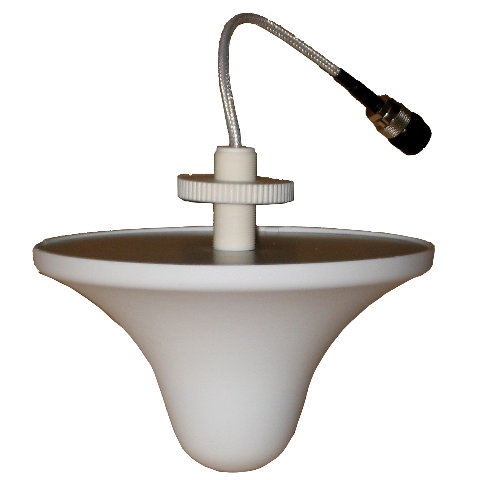

WC-0825 800/2500 MHz Dual Band Ceiling Antenna

• Frequency: 824~960/1710~2500 MHz
• Gain: 3 dBi
• V.S.W.R. ≤1.5
• Vertical Beamwidth: 55°
• Impedance: 50 ohm
• Polarization: Vertical
• Power (Max.): 100 W
• Connector: N Female

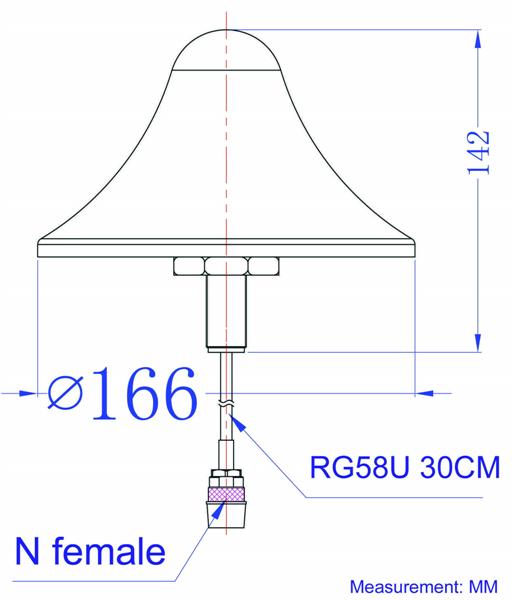

• Dimension: Φ168x100 mm
• Weight: 500 g
• Reflector Material: Steel
• Radome Material: UV-Inhibited ABS
• Installation: Peculiar ceiling Mounting
