    Product Name : WF-5198-WLAN antennas
    Inquiry
    Back
    Product Introduction

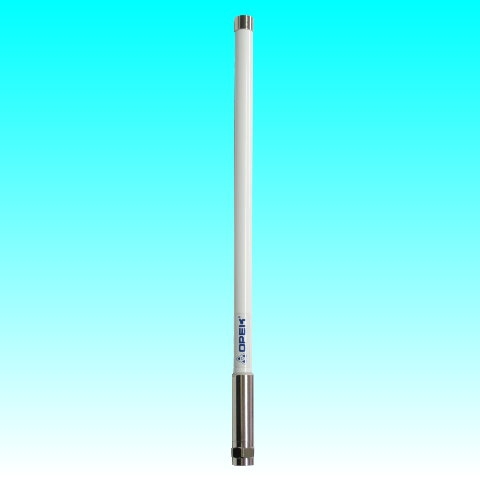

    WF-5198 5.1-5.9 GHz Mesh Omni-directional Antenna

    • Frequency: 5.1 - 5.9 GHz
    • Gain: 8 dBi
    • V.S.W.R.≤1.5
    • Impedance: 50 ohm
    • Antenna Type: Colinear
    • Polarization: Vertical
    • Horizontal Beamwidth: 360°
    • Vertical Beamwidth: 17°
    • Power (Max.): 50 W
    • Connector: N-Male
    • Dimensions: 17(OD) x 315(L) mm
    • Weight: 170 g
    • Temperature: -40~80°C
    • Wind Velocity: 60 M/s

    Panel;Yagi;Omni;Sector & Ceiling Antennas for Wireless Networking
    Frequency
    WLAN 4G: 770-830/868±30/902-928MHz
    WiMax :
    2.3-2.4/2.5-2.7 GHz(802.16e)
    3.4-3.7 GHz(802.16d)
    5.1-5.9 GHz(802.11a)
    WiFi : 2.4-2.5 GHz
    WiMax/WiFi: 4.9-5.125 GHz
    IS Band: 3.9-4.2 GHz
    Gain: 3/4/5/6/8/10/12 dBi Optional
    Application: Mesh/Point-to-Point/Multipoint-to-Point
    /High-Speed Mobile/Coverage
