WG-2419-WLAN antenna

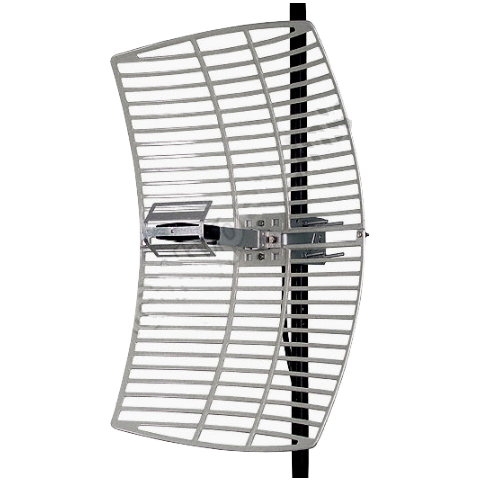

WG-2419 2.4GHz 19dBi Gain Wireless Lan Grid Antenna

• Frequency: 2400-2483.5 MHz
• Bandwidth: 83.5 MHz
• Gain: 19 dBi
• Horizontal Beamwidth: 12°
• Vertical Beamwidth: 16°
• F/B Ratio > 25 dB
• V.S.W.R. ≤ 1.5
• Impedance: 50 Ω
• Polarization: Vertical or Horizontal
• Power (Max.): 100 W
• Connector: N Female
• Dimension: 0.4 x 0.6 M
• Weight: 2.4 kg
• Wind Velocity: 60 M/s
