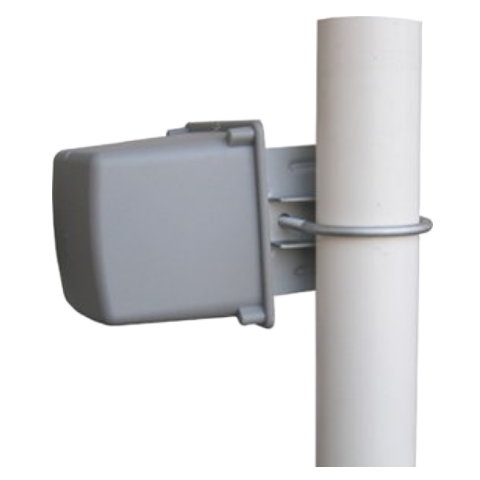

WP-2412M-WLAN antenna

WP-2412M-WLAN antenna
    Enlargement
    Product Name : WP-2412M-WLAN antenna
    Inquiry
    Back
    Product Introduction
    WP-2412M 2.4GHz 12dBi Gain Wireless Lan Panel Antenna
    • Frequency: 2400-2483.5 MHz
    • Bandwidth: 83.5 MHz
    • Gain: 12dBi
    • Horizontal Beamwidth: 65°
    • Vertical Beamwidth: 34°
    • F/B ＞ 25dB
    • V.S.W.R. ≤ 1.5
    • Impedance: 50 Ω
    • Polarization: Vertical
    • Power (Max): 100 W
    • Connector: N Female
    • Dimension: 102x102x102 mm
    • Weight: 500 g
