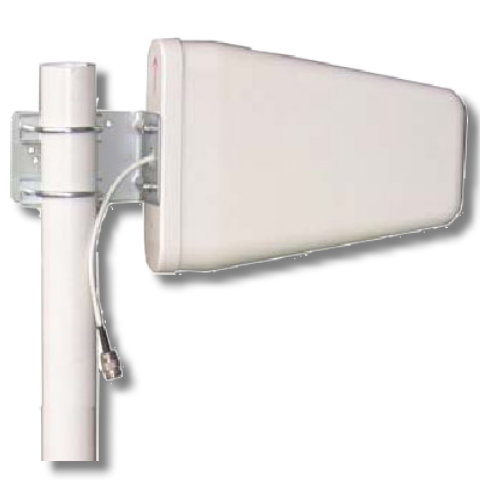

WY-0825-WLAN antenna
    Enlargement
    Product Name : WY-0825-WLAN antenna
    Product Introduction

    WY-0825 800/2500 MHz Broadband YAGI Antenna

    • Frequency: 806-960/1710-2500 MHz
    • Gain: 6 / 9 dBi
    • V.S.W.R.≤1.5
    • Impedance: 50 ohm
    • Horizontal Beamwidth: 70°~ 90°
    • Vertical Beamwidth: 85°~ 110°
    • F/B Ratio>20dB
    • Power (Max.): 100 W
    • Lightning protection: DC ground
    • Connector: N-Female
    • Dimensions: 290 x 210 x 65 mm
    • Weight 1.5 Kg
    • Temperature: -40~70°C
    • Wind Velocity: 60 M/s
