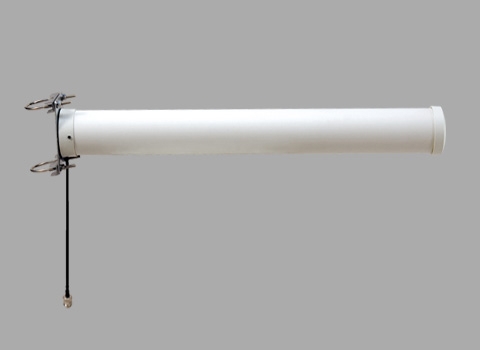

WY-2312-WLAN antennas

WY-2312-WLAN antennas
    Enlargement
    Product Name : WY-2312-WLAN antennas
    Inquiry
    Back
    Product Introduction
    • Frequency: 2.4 / 3.5 / 5.8 GHz
    • Gain: 12 / 15 / 18 dBi
    • POLARIZATION: VERTICAL
    • V.S.W.R. LESS THAN 1.5
    • POWER CAPACITY: 50 WATTS
    • IMPEDANCE: 50 OHM
    • BEAM WIDTH :
      12dBi 15dBi 18dBi
    OVERTICAL 35° 28° 23°
    HORIZONTAL 40° 28° 24°
    • N FEMALE CONNECTOR
    • OPERATING TEMPERATURE: -40°C ~ +80°C
    • UV-INHIBITED PLASTIC TUBE
    • STAINLESS STEEL MOUNTING HARDWARE (U-BOLTS; TOOTH BRACKETS; NUTS; SPRING WASHERS)
    MODEL NO. FREQ.( MHz ) GAIN( dBi ) Diameter x Length (mm)
    WY-2312 2300~2400 12 125 x 80 x 365
    WY-2315 2300~2400 15 125 x 80 x 650
    WY-2318 2300~2400 18 125 x 80 x 875
    WY-2412 2400~2500 12 125 x 80 x 365
    WY-2415 2400~2500 15 125 x 80 x 650
    WY-2418 2400~2500 18 125 x 80 x 875
    WY-2612 2500~2700 12 125 x 80 x 365
    WY-2615 2500~2700 15 125 x 80 x 650
    WY-2618 2500~2700 18 125 x 80 x 875
    WY-3512 3400~3600 12
    WY-3515 3400~3600 15
    WY-3518 3400~3600 18
    WY-5212 5125~5350 12
    WY-5215 5125~5350 15
    WY-5218 5125~5350 18
    WF-5812 5725~5850 12
    WF-5815 5725~5850 15
    WF-5818 5725~5850 18
