YG-2819-2918

YG-2819-2918
    Enlargement
    Product Name : YG-2819-2918
    Inquiry
    Back
    Product Introduction

    Model: YG-2819/YG-2918

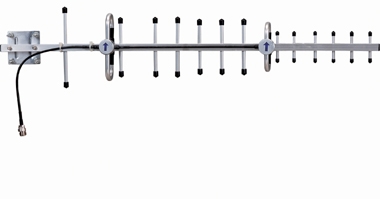

    PROFESSIONAL CELLULAR DUAL BAND YAGI ANTENNA

    • POLARIZATION : LINEAR
    • Max. WIND SPEED : 60 M/s
    • MOUNTING HARDWARES INCLUDED
    • Max.Power(WATT):50
    • Impedance:50Ω
    • V.S.W.R. ≤1.5
    • Mast Diameter(mm): 40-50Φ
    • Connector: N Female

    Model

    Frequency
    (MHz)

    Gain
    (dbi)

    Beam Width
    (H/V)

    Front-to-Back
    Ratio(dB)

    Dimensions
    (mm)

    Unit

    YG-2819-7

    800/1900

    7

    55°/48°

    ≥15 dB

    594x185x55

    9

    YG-2819-9

    800/1900

    9

    50°/45°

    ≥16 dB

    704x185x55

    11

    YG-2819-12

    800/1900

    12

    36°/30°

    ≥18 dB

    1034x185x55

    17

    YG-2918-7

    900/1800

    7

    55°/48°

    ≥15 dB

    594x185x55

    9

    YG-2918-9

    900/1800

    9

    50°/45°

    ≥16 dB

    704x185x55

    11

    YG-2918-12

    900/1800

    12

    36°/30°

    ≥18 dB

    1034x185x55

    17
