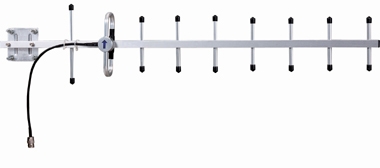

Model: YG-2905/YG-2906/YG-2907/YG-2908
PROFESSIONAL CELLULAR SINGLE BAND YAGI ANTENNA- POLARIZATION : LINEAR
- Max. WIND SPEED : 60 M/s
- MOUNTING HARDWARES INCLUDED
- Max.Power(WATT):50
- Impedance:50Ω
- V.S.W.R. ≤1.5
- Mast Diameter(mm): 40-50Φ
- Connector: N Female
Model | Frequency | Gain | Beam Width | Front-to-Back | Dimensions | Unit |
YG-2905-7 | 824-896 | 7 | 78°/65° | ≥11 dB | 510x180x65 | 5 |
YG-2905-9 | 824-896 | 9 | 55°/43° | ≥13 dB | 680x180x65 | 7 |
YG-2905-12 | 824-896 | 12 | 45°/38° | ≥16 dB | 850x180x65 | 9 |
YG-2905-14 | 824-896 | 14 | 38°/32° | ≥16 dB | 1190x180x65 | 14 |
YG-2906-7 | 870-960 | 7 | 77°/62° | ≥11 dB | 510x180x65 | 5 |
YG-2906-9 | 870-960 | 9 | 56°/48° | ≥13 dB | 680x180x65 | 7 |
YG-2906-12 | 870-960 | 12 | 45°/38° | ≥16 dB | 850x180x65 | 9 |
YG-2906-14 | 870-960 | 14 | 38°/33° | ≥16 dB | 1190x180x65 | 14 |
YG-2907-7 | 1710-1880 | 7 | 79°/63° | ≥ 9 dB | 380x92x40 | 5 |
YG-2907-9 | 1710-1880 | 9 | 58°/49° | ≥11 dB | 480x92x40 | 7 |
YG-2907-12 | 1710-1880 | 12 | 47°/40° | ≥15 dB | 780x92x40 | 9 |
YG-2907-14 | 1710-1880 | 14 | 38°/34° | ≥15 dB | 980x92x40 | 14 |
YG-2908-7 | 1850-1990 | 7 | 78°/63° | ≥11 dB | 380x92x40 | 5 |
YG-2908-9 | 1850-1990 | 9 | 57°/49° | ≥13 dB | 480x92x40 | 7 |
YG-2908-12 | 1850-1990 | 12 | 46°/39° | ≥15 dB | 780x92x40 | 9 |
YG-2908-14 | 1850-1990 | 14 | 38°/33° | ≥15 dB | 980x92x40 | 14 |
