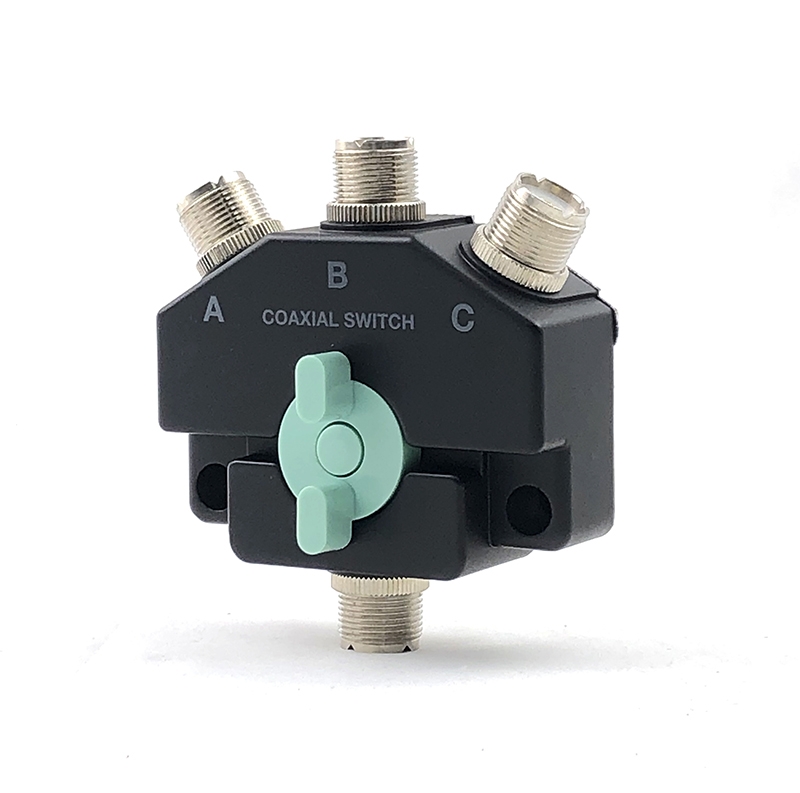

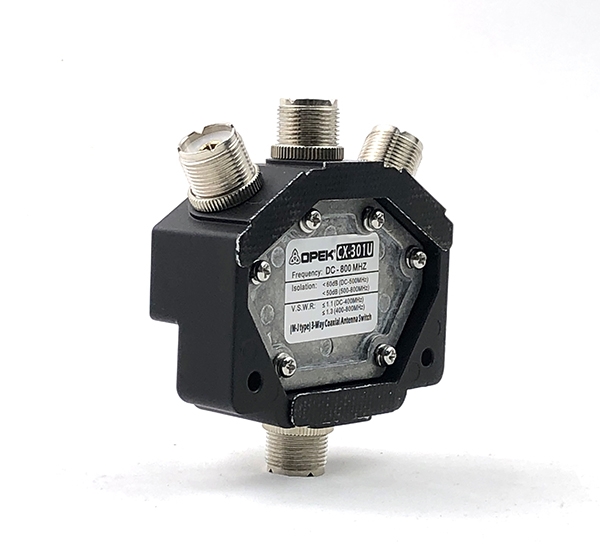

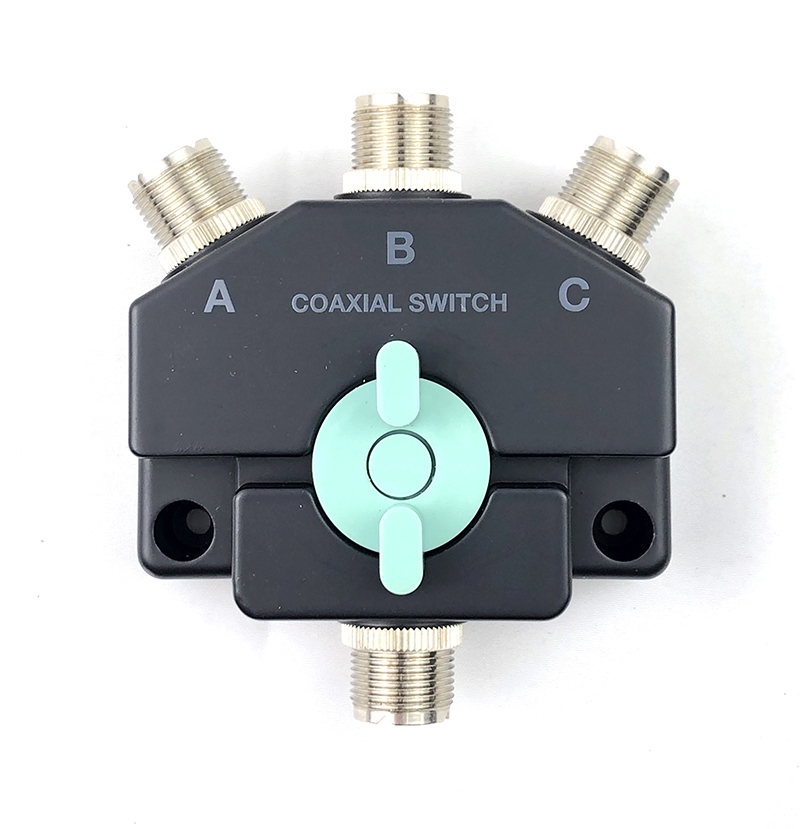

CX-301U / CX-301N

3-WAY COAX ANTENNA SWITCH
CX-301U W/SO-239 UHF JACKS
CX-301N W/N-TYPE JACKS

• WITH CENTER GROUND TAP KEEPS THEUNUSED TERMINAL ALWAYS GROUNDED
• ROTARY SELECTING SWITCH
• FREQUENCY : UP TO 800 MHz (CX-301U)
• FREQUENCY : UP TO  1   GHz (CX-301N)

• V.S.W.R. : LESS THAN 1.2:1
• POWER RATING : 1 KW (CW)
• IMPEDANCE : 50 OHMS
• INSERTION LOSS : LESS THAN 0.2 dB
• ISOLATION : BETTER THAN 60 dB (DC-500MHz)
