CX-5

CX-5

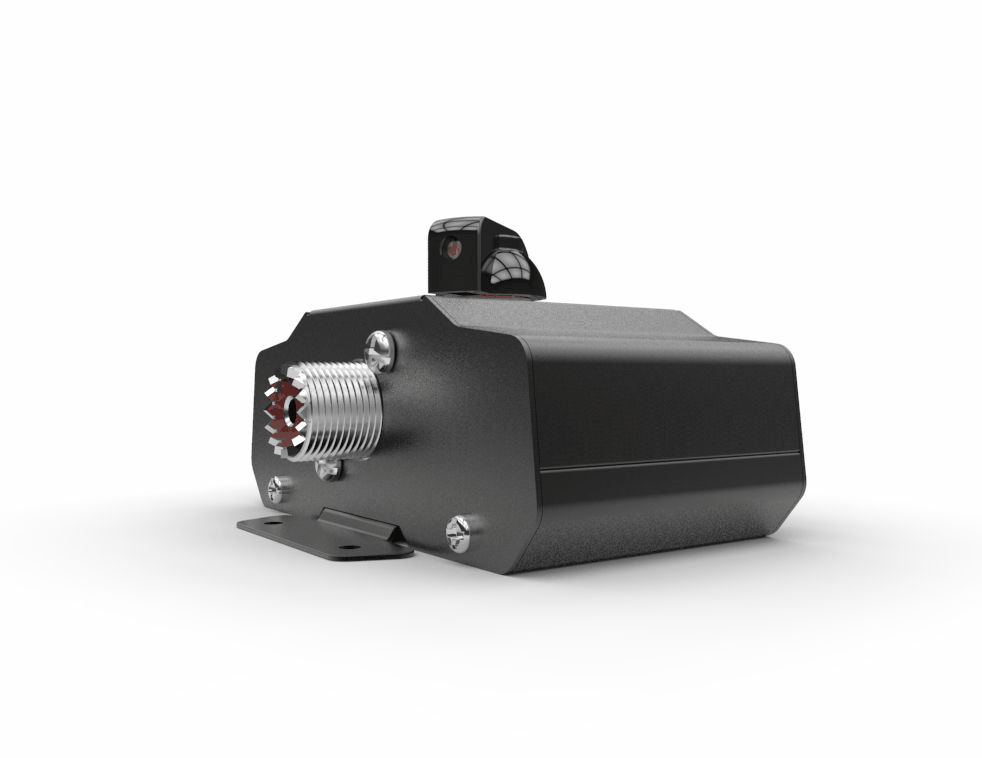

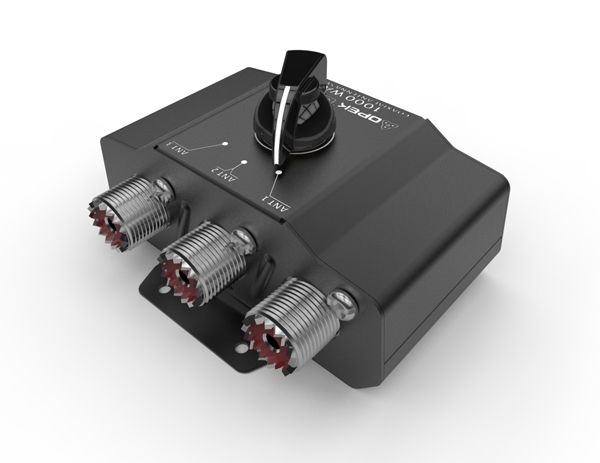

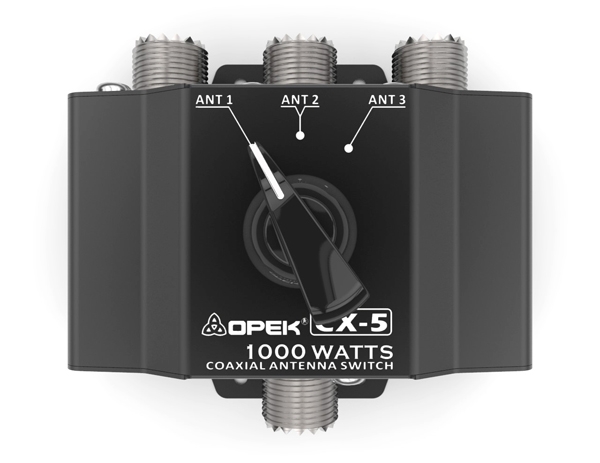

3-WAY COAX ANTENNA SWITCH(W/SO-239 UHF JACKS)

• ROTARY SELECTING SWITCH
• FREQUENCY RANGE : DC~500 MHz
• IMPEDANCE : 50 Ohms

• POWER RANGE : DC~200 Mhz     1KW   PEP
                             300~500 Mhz   500W PEP

• ISOLATION : <=50dB
  V.S.W.R. :  DC~300 MHz    <= 1.5
                   300~500 MHz   <= 2.0

• CONNECTORS: SO-239 UHF Jacks
• DIMENSIONS : 93(W) x 54(H) x 83(D) mm
