VU-1520

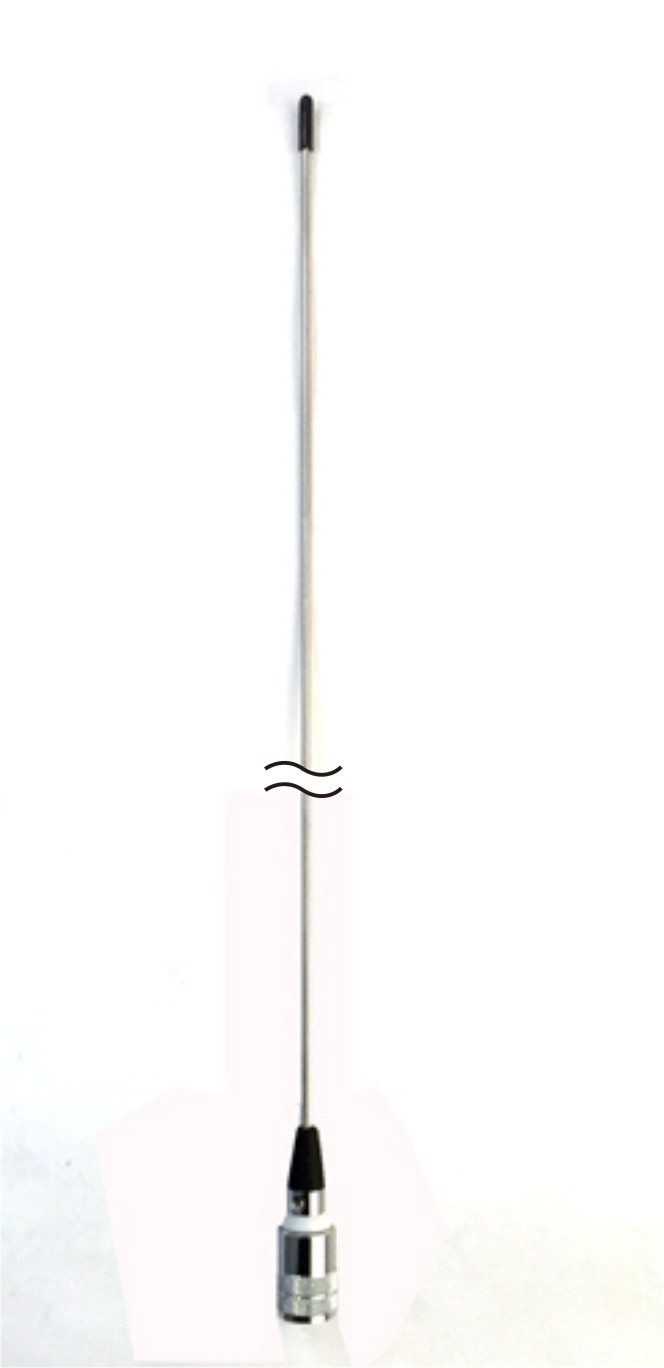

VU-1520  VHF/UHF DUAL BAND COMMUNICATION ANTENNA

(108 - 550MHz Tuned by Cutting)

- Dual Band Moblie Antenna

-Unity-gain, Omnidirectional

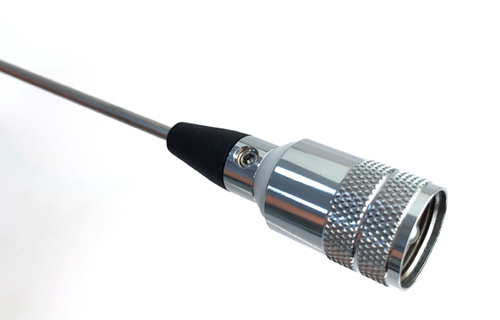

- UHF Male Connector (PL-259)

- 17-7PH Stainless Steel Whip

- Connector material : Teflon, Chrome Plated

Electrical Specifications :

• FREQUENCY                    : 108 ~ 550 MHz (Tuned by Whip Cutting)
• Bandwidth (SWR ≤2.0 )   : 15 MHz @ 108MHz  (w/ "AM-106-PL" (OPEK MAG mount))
• Wave                             : 1/4 λ
• GAIN                              : Unity (0dB ref. freq )
• VSWR @ res. Freq.          : ≤ 1.35 @108MHz (w/ "AM-106" (OPEK MAG mount))
• IMPEDANCE                     : 50 OHMS
• Radiation                         : Omnidirectional
• POWER CAPACITY            : 200 Watts
• CONNECTION                   : UHF Male (PL-259)
• LENGTH                            : 677mm (Approx.)
