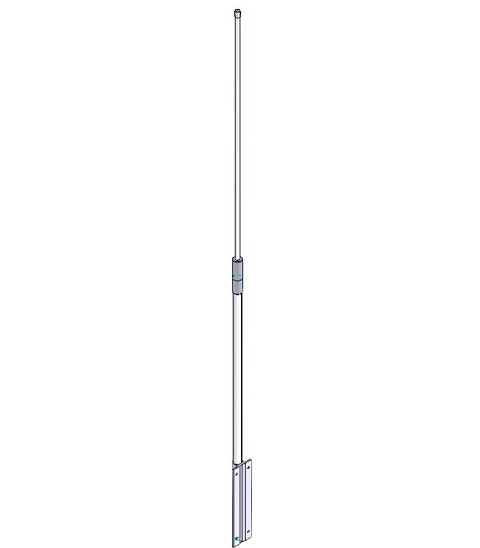

VH-2203

37-50 MHz 2-SEC. VHF BASE STATION NGP ANTENNA

Features

• Durable fiberglass rods offer:
  - Water and weather proof; a must in saltwater areas
  - Durable construction withstands 90MPH(40M/SEC.) wind speed
  - Significantly reduced precipitate static and lower background noise
  - Excellent insulation; less interference from rain; sleet and snow
• 2-section 3.46-meter overall length; for easy installation
• Mast diameter accepted: 30~62φmm (1-3/16"~ 2-7/16")
• No ground plane design
• Retractable adjusting of the whip length for working between 37-50MHz (Without cutting the whip)
• Built-in SUPER DURABLE ALUMINUM EXTRUSION MOUNTING BRACKET

Electrical Specifications

• Gain ............................... DC Ground 3.0 dBd
• V.S.W.R. ....................... 1.6 @ 50MHz ( 1.6~1.8 throughout the entire bandwidth )
• Frequency ..................... 37~50 MHz
• Polarization .................... Vertical
• Impedance .................... 50 Ohm
• Power Capacity .............. 150 Watts
• Configuation ................... 5/8 Wave
• Connector ....................... UHF JACK(SO-239
